Product Overview

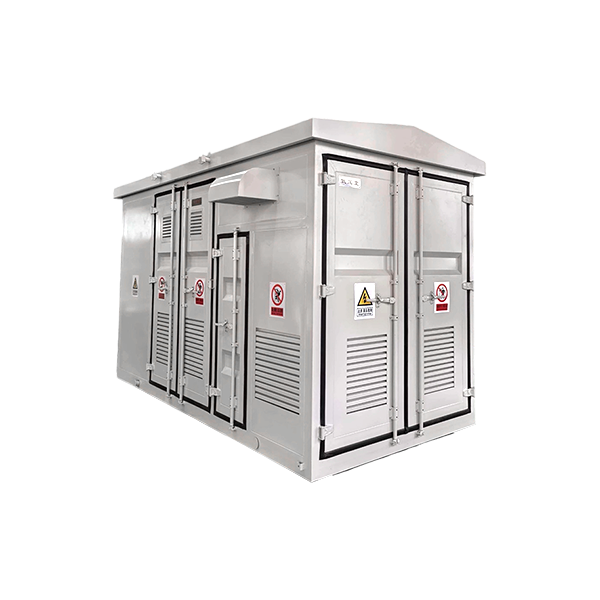

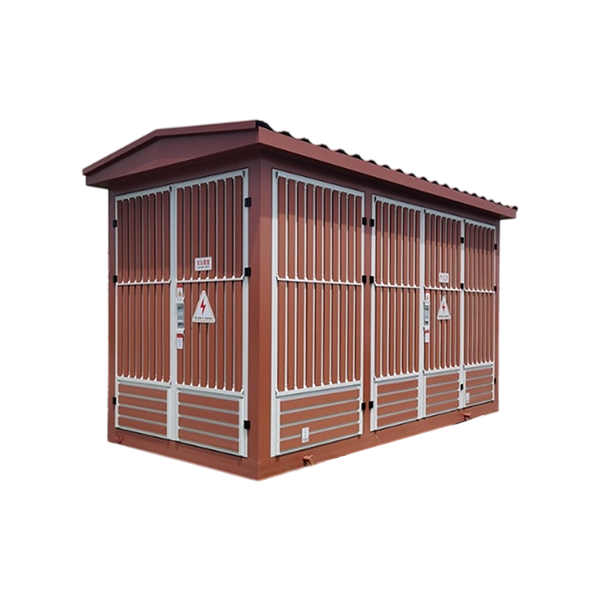

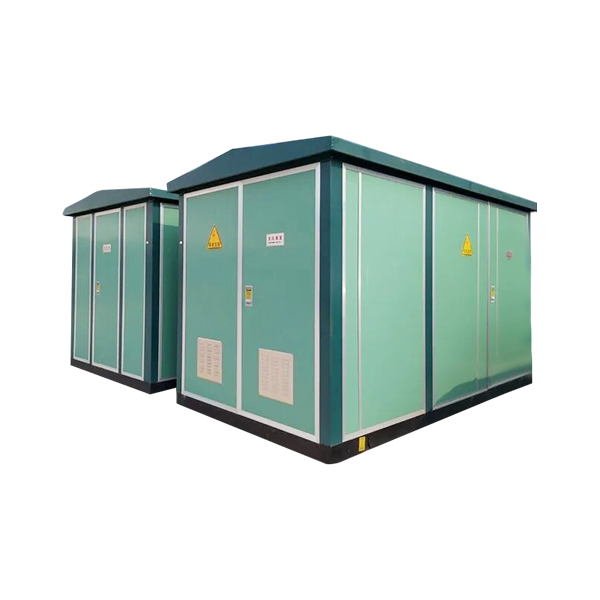

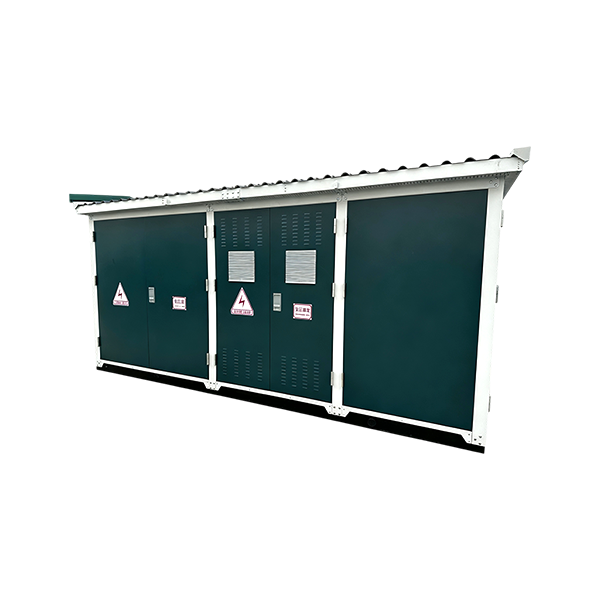

YBM‑12(24)/0.4 series box‑type substation is a compact complete set of equipment integrating high‑voltage electrical apparatus, transformer and low‑voltage electrical apparatus. It is applied in high‑rise urban buildings, urban and rural constructions, luxury villas, squares and parks, residential communities, high‑tech development zones, small‑and‑medium‑sized power plants, mines, oil fields and temporary construction power‑supply sites, for receiving and distributing electric power and supplying low‑voltage electric energy to end‑users.

Technical Parameters

Content	Unit	High‑voltage Switch	Power Transformer	Low‑voltage Switch
Rated Voltage	kV	3.6	3/0.4	0.4/0.22
		7.2	6/0.4	0.4/0.22
		12(24)	10(24)/0.4	0.4/0.22
Rated Current	A	≤630		≤3200
Rated Frequency	Hz		50(60)
Rated Capacity	kVA		50-2000
Rated Short‑time Withstand Current (4s)	kA	25
Rated Peak Withstand Current	kA	50
Rated Short‑circuit Making Current	kA	50
Power‑frequency Withstand Voltage Value‑General Value	kV	42(65)	Dry‑type: 28 dB, Oil‑immersed: 35 dB	2.5
10 kV Rated Isolating Break	kV	48(79)
Insulation Level‑Impulse Withstand Voltage‑General Value	kV	75(125)	75	8
Insulation Level‑Impulse Withstand Voltage‑Isolating Break	kV	85(145)
Protection Degree		IP33
Noise Level	dB		Dry‑type: ≤55 dB, Oil‑immersed: ≤65 dB

* All products are custom‑made, and parameters are for reference only.

Normal Use Condition

Ambient temperature: -35°C ~ 45°C;

Altitude: ≤1000 m;

Relative humidity: daily average ≤95%, monthly average ≤90%;

Seismic intensity: ≤Grade 8;

Service location: Indoor, free of fire & explosion hazards, severe pollution and chemical corrosion.

Note: Special written statement shall be provided upon order if exceeding the above normal service environmental conditions.

This product can be designed with functions to connect to computer interfaces for realizing on‑line centralized monitoring and control of power system.

Product Features

YBM‑12(24)/0.4 Series Box‑type Substation features complete assembly, small footprint, compact structure, safe and reliable operation, convenient maintenance and mobility. Compared with conventional civil‑built substations, box‑type substations of the same capacity generally occupy only 1/10‑1/5 of the land area of conventional substations, which greatly reduces design workload, construction work and project cost. In power distribution systems, it can be applied to ring‑main distribution systems, dual‑power supply systems or radial terminal distribution systems. It is a new‑type complete‑set equipment for construction and renovation of urban and rural substations.

This product complies with national standards GB/T17467 《High‑voltage/Low‑voltage Prefabricated Substation》 and SD320 《Technical Specifications for Box‑type Substation》.
