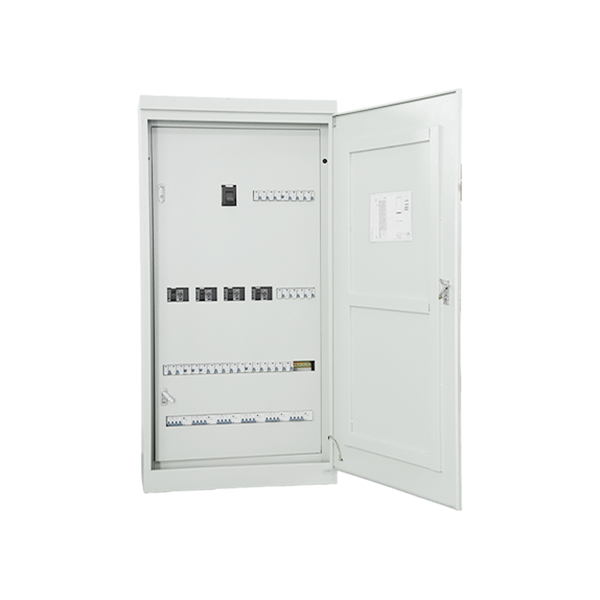

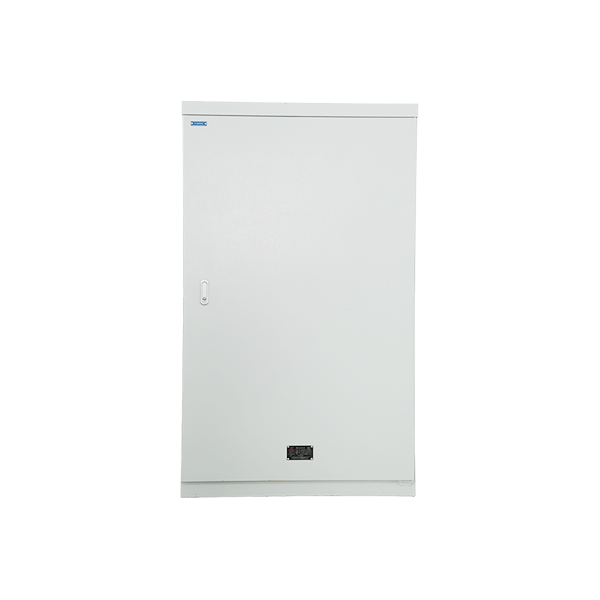

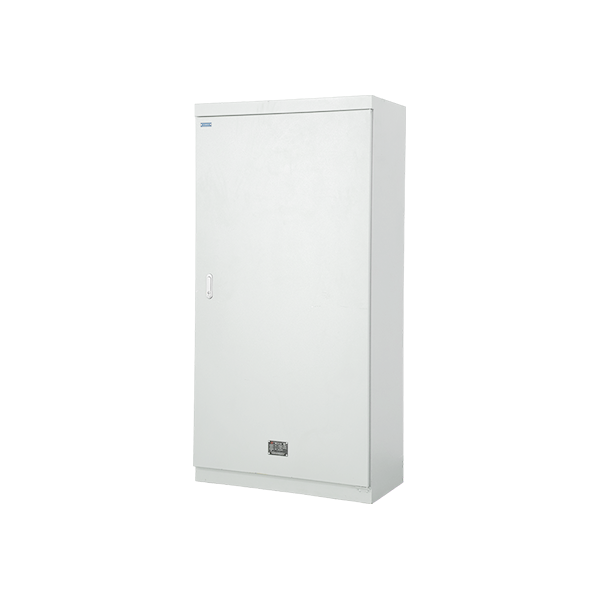

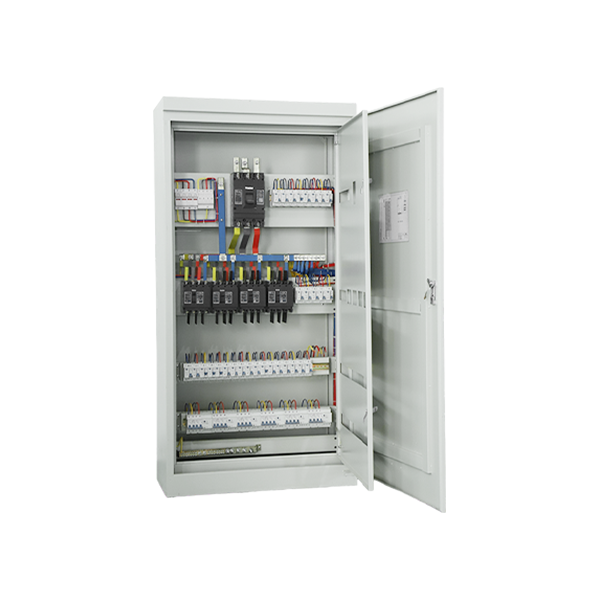

JXF Wall‑mount Distribution Box

Product Overview

The XM series distribution boxes are widely used in building lighting and small power control circuits for power plants, substations, industrial enterprises, hotels, apartments, high-rise buildings, ports, stations, airports, warehouses, hospitals, and other facilities. They are suitable for indoor lighting and power distribution lines with an AC frequency of 50Hz, single-phase AC voltage up to 220V, three-phase AC voltage up to 380V, and currents up to 200A. These devices serve as overload protection, short-circuit protection, and circuit switching, and are appropriate for civilian use or areas accessible to non-professionals.This product complies with standards such as IEC60439-1 and GB7251.1 "Low-voltage Complete Switchgear and Control Equipment.".

Technical Parameters

Project Name	Unit	Technical Parameters
Rated Frequency	HZ	50
Rated Voltage	V	380 220
Rated Insulation Voltage	V	660
Rated Current	A	≤630
Rated Short-time Withstand Current	KA	6
Power Frequency Withstand Voltage	V/1min	1890
Protection Rating		IP30

* All products are custom‑made, and parameters are for reference only.

Normal Use Condition

The ambient air temperature is not higher than+40 ° C, not lower than -5 ° C, and its average temperature within 24 hours is not higher than+35 ° C

Weather conditions, clean air, and relative humidity not exceeding 50% at a maximum temperature of+40 ° C Higher relative humidity is allowed at lower temperatures, such as 90% at+20 ° C, but consideration should be given to the possibility of occasional moderate condensation due to temperature changes.

Altitude ≤ 2000m.

This product is suitable for transportation and storage at temperatures ranging from -25 ° C to+55 ° C, and can reach+70 ° C in a short period of time (not exceeding 24 hours). At these extreme temperatures, the device should not suffer any irreparable damage and should be able to function normally under normal conditions.

If the above usage conditions cannot be met, the user should raise the issue with the manufacturer at the time of ordering and negotiate a solution.

Product Features

The XM type distribution box is made by bending and welding electrolytic steel plates, and the surface is treated with epoxy resin electrostatic spraying, which is beautiful and durable. Distribution boxes are classified into lighting distribution boxes, power control boxes, metering boxes, and other types according to their purposes; According to their structure, indoor wall mounted control boxes and outdoor protective boxes are divided into two types: metal doors and perspective doors. The universal distribution box has flexible and diverse styles, and can be equipped with different electrical performance control systems as needed, such as lighting distribution boxes, power control boxes, metering boxes, air conditioning, control boxes, water pump control boxes, fire control boxes, etc.
